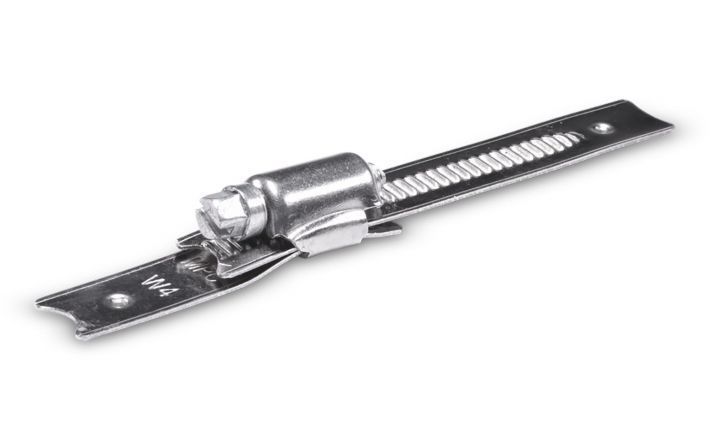

GS12G Worm gear clamps

Name: GS12G
Brand: Tridon
Rating: 5 (1 reviews)

12 mm
W4 / A2

The GS is a stretched clamp, which is often used in the manufacture of larger clamping bands, for example for exhaust gas ducts. The functionality is identical to that of the regular worm gear hose clamps. The axial constructional force is resistant to at least 3000N.

Download data sheet Request sample Request an inquiry

Specifications

3D model: Send request
Product type: "GS" Stretched
Product family: GS
Band width (mm): 12
Length (mm): 113
Material thickness (mm): 0,75
Material DIN: W4 / A2
Material AISI: All parts 300 series
Norm / standard: Tridon
Tightening torque (Nm): 3
Breaking torque (Nm): > 4
Minimum order quantity: 50
Box quantity: 1000
